Program diagrams

Program diagrams#

These images are automatically generated by PyReverse.

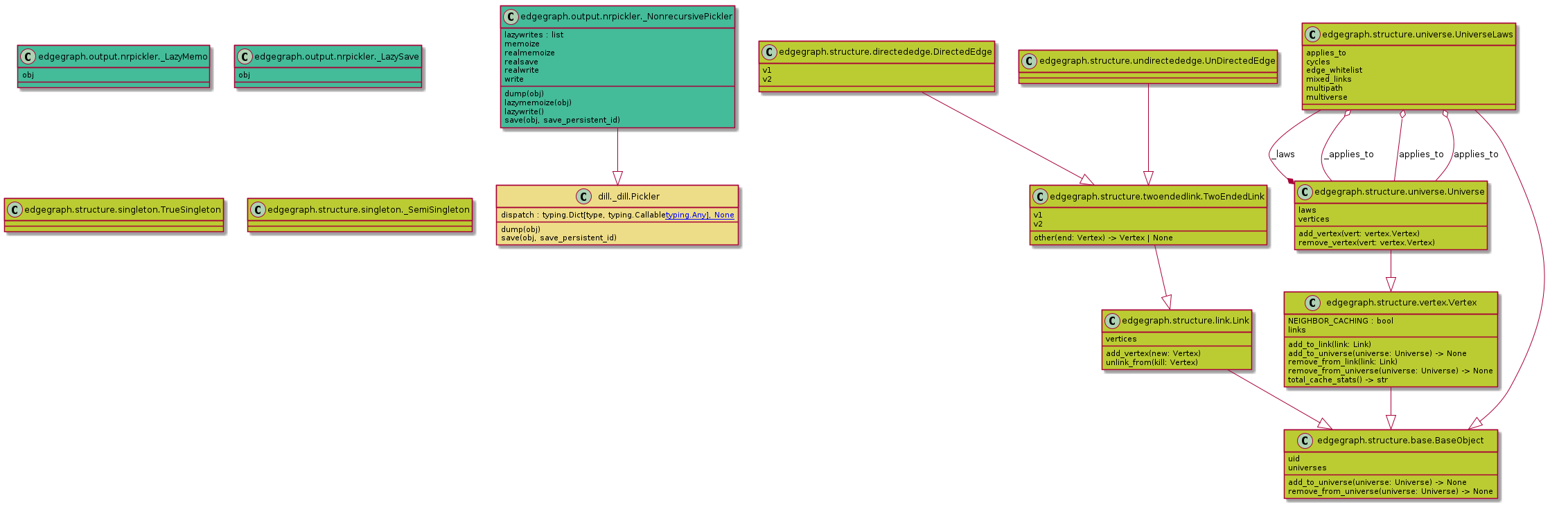

Class diagram#

@startuml classes set namespaceSeparator none class "dill._dill.Pickler" as dill._dill.Pickler #EEDD88 { dispatch : typing.Dict[type, typing.Callable[[Pickler, typing.Any], None]] dump(obj) save(obj, save_persistent_id) } class "edgegraph.output.nrpickler._LazyMemo" as edgegraph.output.nrpickler._LazyMemo #44BB99 { obj } class "edgegraph.output.nrpickler._LazySave" as edgegraph.output.nrpickler._LazySave #44BB99 { obj } class "edgegraph.output.nrpickler._NonrecursivePickler" as edgegraph.output.nrpickler._NonrecursivePickler #44BB99 { lazywrites : list memoize realmemoize realsave realwrite write dump(obj) lazymemoize(obj) lazywrite() save(obj, save_persistent_id) } class "edgegraph.structure.base.BaseObject" as edgegraph.structure.base.BaseObject #BBCC33 { uid universes add_to_universe(universe: Universe) -> None remove_from_universe(universe: Universe) -> None } class "edgegraph.structure.directededge.DirectedEdge" as edgegraph.structure.directededge.DirectedEdge #BBCC33 { v1 v2 } class "edgegraph.structure.link.Link" as edgegraph.structure.link.Link #BBCC33 { vertices add_vertex(new: Vertex) unlink_from(kill: Vertex) } class "edgegraph.structure.singleton.TrueSingleton" as edgegraph.structure.singleton.TrueSingleton #BBCC33 { } class "edgegraph.structure.singleton._SemiSingleton" as edgegraph.structure.singleton.semi_singleton_metaclass._SemiSingleton #BBCC33 { } class "edgegraph.structure.twoendedlink.TwoEndedLink" as edgegraph.structure.twoendedlink.TwoEndedLink #BBCC33 { v1 v2 other(end: Vertex) -> Vertex | None } class "edgegraph.structure.undirectededge.UnDirectedEdge" as edgegraph.structure.undirectededge.UnDirectedEdge #BBCC33 { } class "edgegraph.structure.universe.Universe" as edgegraph.structure.universe.Universe #BBCC33 { laws vertices add_vertex(vert: vertex.Vertex) remove_vertex(vert: vertex.Vertex) } class "edgegraph.structure.universe.UniverseLaws" as edgegraph.structure.universe.UniverseLaws #BBCC33 { applies_to cycles edge_whitelist mixed_links multipath multiverse } class "edgegraph.structure.vertex.Vertex" as edgegraph.structure.vertex.Vertex #BBCC33 { NEIGHBOR_CACHING : bool links add_to_link(link: Link) add_to_universe(universe: Universe) -> None remove_from_link(link: Link) remove_from_universe(universe: Universe) -> None total_cache_stats() -> str } edgegraph.output.nrpickler._NonrecursivePickler --|> dill._dill.Pickler edgegraph.structure.directededge.DirectedEdge --|> edgegraph.structure.twoendedlink.TwoEndedLink edgegraph.structure.link.Link --|> edgegraph.structure.base.BaseObject edgegraph.structure.twoendedlink.TwoEndedLink --|> edgegraph.structure.link.Link edgegraph.structure.undirectededge.UnDirectedEdge --|> edgegraph.structure.twoendedlink.TwoEndedLink edgegraph.structure.universe.Universe --|> edgegraph.structure.vertex.Vertex edgegraph.structure.universe.UniverseLaws --|> edgegraph.structure.base.BaseObject edgegraph.structure.vertex.Vertex --|> edgegraph.structure.base.BaseObject edgegraph.structure.universe.UniverseLaws --* edgegraph.structure.universe.Universe : _laws edgegraph.structure.universe.Universe --o edgegraph.structure.universe.UniverseLaws : _applies_to edgegraph.structure.universe.Universe --o edgegraph.structure.universe.UniverseLaws : applies_to edgegraph.structure.universe.Universe --o edgegraph.structure.universe.UniverseLaws : applies_to @enduml

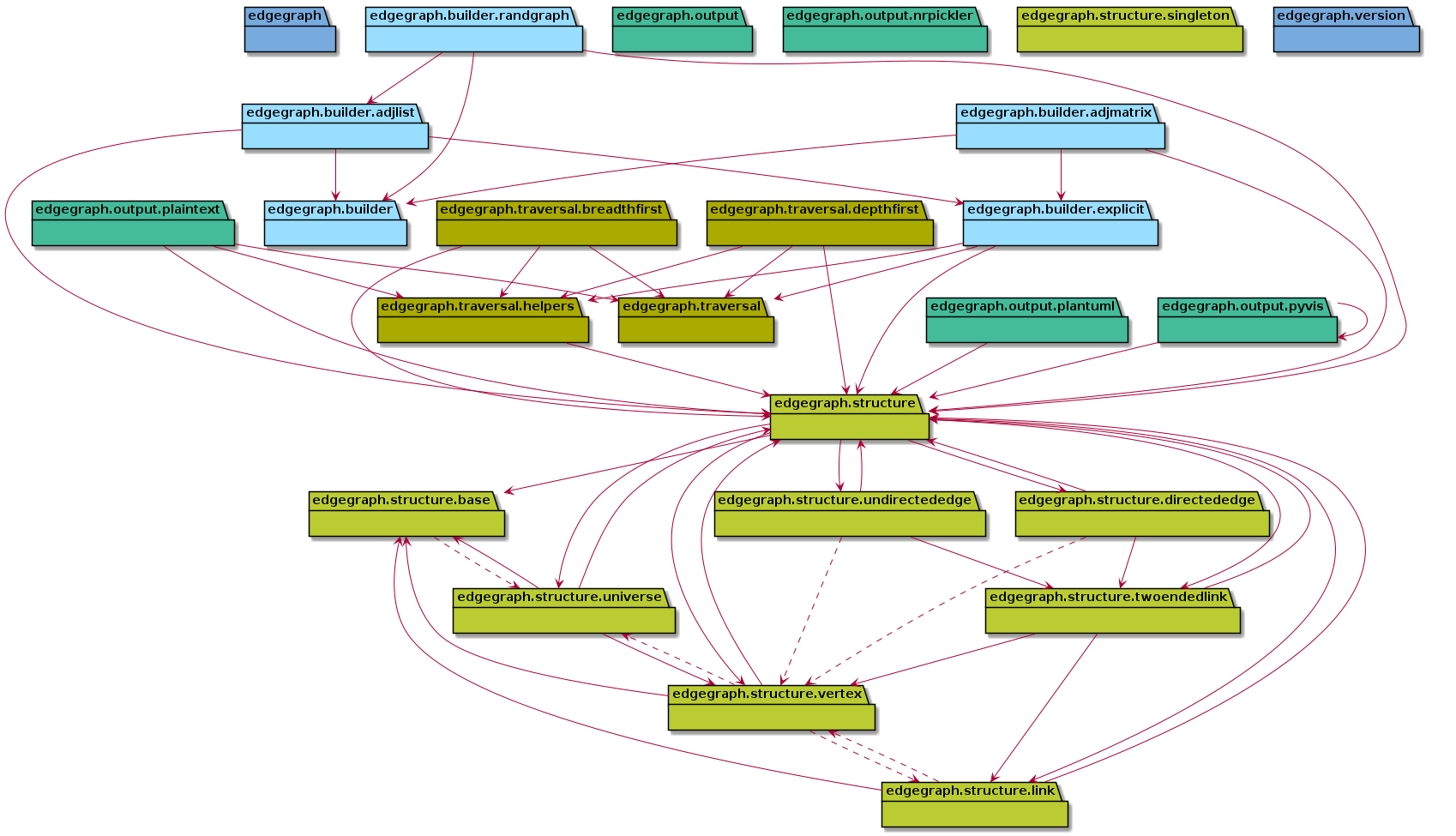

Package diagram#

@startuml packages set namespaceSeparator none package "edgegraph" as edgegraph #77AADD { } package "edgegraph.builder" as edgegraph.builder #99DDFF { } package "edgegraph.builder.adjlist" as edgegraph.builder.adjlist #99DDFF { } package "edgegraph.builder.adjmatrix" as edgegraph.builder.adjmatrix #99DDFF { } package "edgegraph.builder.explicit" as edgegraph.builder.explicit #99DDFF { } package "edgegraph.builder.randgraph" as edgegraph.builder.randgraph #99DDFF { } package "edgegraph.output" as edgegraph.output #44BB99 { } package "edgegraph.output.nrpickler" as edgegraph.output.nrpickler #44BB99 { } package "edgegraph.output.plaintext" as edgegraph.output.plaintext #44BB99 { } package "edgegraph.output.plantuml" as edgegraph.output.plantuml #44BB99 { } package "edgegraph.output.pyvis" as edgegraph.output.pyvis #44BB99 { } package "edgegraph.structure" as edgegraph.structure #BBCC33 { } package "edgegraph.structure.base" as edgegraph.structure.base #BBCC33 { } package "edgegraph.structure.directededge" as edgegraph.structure.directededge #BBCC33 { } package "edgegraph.structure.link" as edgegraph.structure.link #BBCC33 { } package "edgegraph.structure.singleton" as edgegraph.structure.singleton #BBCC33 { } package "edgegraph.structure.twoendedlink" as edgegraph.structure.twoendedlink #BBCC33 { } package "edgegraph.structure.undirectededge" as edgegraph.structure.undirectededge #BBCC33 { } package "edgegraph.structure.universe" as edgegraph.structure.universe #BBCC33 { } package "edgegraph.structure.vertex" as edgegraph.structure.vertex #BBCC33 { } package "edgegraph.traversal" as edgegraph.traversal #AAAA00 { } package "edgegraph.traversal.breadthfirst" as edgegraph.traversal.breadthfirst #AAAA00 { } package "edgegraph.traversal.depthfirst" as edgegraph.traversal.depthfirst #AAAA00 { } package "edgegraph.traversal.helpers" as edgegraph.traversal.helpers #AAAA00 { } package "edgegraph.version" as edgegraph.version #77AADD { } edgegraph.builder.adjlist --> edgegraph.builder edgegraph.builder.adjlist --> edgegraph.builder.explicit edgegraph.builder.adjlist --> edgegraph.structure edgegraph.builder.adjmatrix --> edgegraph.builder edgegraph.builder.adjmatrix --> edgegraph.builder.explicit edgegraph.builder.adjmatrix --> edgegraph.structure edgegraph.builder.explicit --> edgegraph.structure edgegraph.builder.explicit --> edgegraph.traversal edgegraph.builder.explicit --> edgegraph.traversal.helpers edgegraph.builder.randgraph --> edgegraph.builder edgegraph.builder.randgraph --> edgegraph.builder.adjlist edgegraph.builder.randgraph --> edgegraph.structure edgegraph.output.plaintext --> edgegraph.structure edgegraph.output.plaintext --> edgegraph.traversal edgegraph.output.plaintext --> edgegraph.traversal.helpers edgegraph.output.plantuml --> edgegraph.structure edgegraph.output.pyvis --> edgegraph.output.pyvis edgegraph.output.pyvis --> edgegraph.structure edgegraph.structure --> edgegraph.structure.base edgegraph.structure --> edgegraph.structure.directededge edgegraph.structure --> edgegraph.structure.link edgegraph.structure --> edgegraph.structure.twoendedlink edgegraph.structure --> edgegraph.structure.undirectededge edgegraph.structure --> edgegraph.structure.universe edgegraph.structure --> edgegraph.structure.vertex edgegraph.structure.directededge --> edgegraph.structure edgegraph.structure.directededge --> edgegraph.structure.twoendedlink edgegraph.structure.link --> edgegraph.structure edgegraph.structure.link --> edgegraph.structure.base edgegraph.structure.twoendedlink --> edgegraph.structure edgegraph.structure.twoendedlink --> edgegraph.structure.link edgegraph.structure.twoendedlink --> edgegraph.structure.vertex edgegraph.structure.undirectededge --> edgegraph.structure edgegraph.structure.undirectededge --> edgegraph.structure.twoendedlink edgegraph.structure.universe --> edgegraph.structure edgegraph.structure.universe --> edgegraph.structure.base edgegraph.structure.universe --> edgegraph.structure.vertex edgegraph.structure.vertex --> edgegraph.structure edgegraph.structure.vertex --> edgegraph.structure.base edgegraph.traversal.breadthfirst --> edgegraph.structure edgegraph.traversal.breadthfirst --> edgegraph.traversal edgegraph.traversal.breadthfirst --> edgegraph.traversal.helpers edgegraph.traversal.depthfirst --> edgegraph.structure edgegraph.traversal.depthfirst --> edgegraph.traversal edgegraph.traversal.depthfirst --> edgegraph.traversal.helpers edgegraph.traversal.helpers --> edgegraph.structure edgegraph.structure.base ..> edgegraph.structure.universe edgegraph.structure.directededge ..> edgegraph.structure.vertex edgegraph.structure.link ..> edgegraph.structure.vertex edgegraph.structure.undirectededge ..> edgegraph.structure.vertex edgegraph.structure.vertex ..> edgegraph.structure.link edgegraph.structure.vertex ..> edgegraph.structure.universe @enduml
